Silverstar

Silverstar
LENGTH
46' - 53'
WIDTH
102" Outside, 99" Inside
HEIGHT
13'6"
KING PIN
30" Standard Setting (6" high assembly)
SIDES
.08" Aluminum, Formed Posts on 21" Centers
WHEELS
(8) 8.25x24.5"

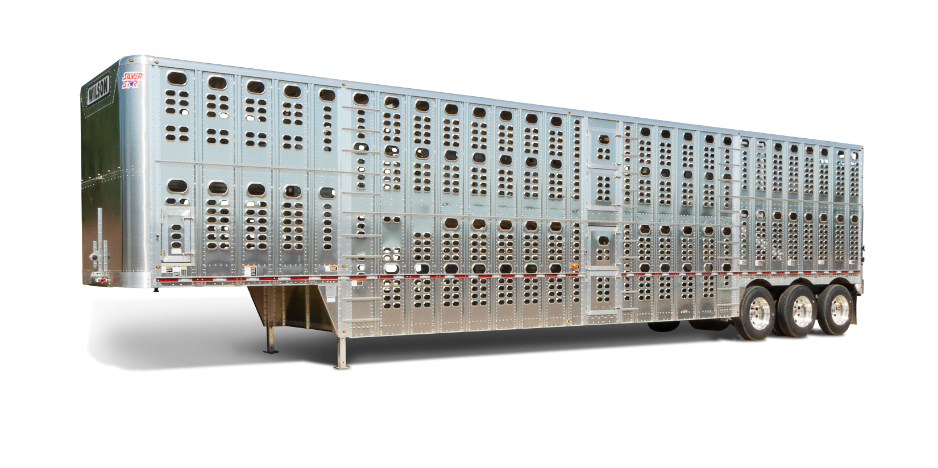

THE SILVERSTAR LIVESTOCK TRAILER

When hauling livestock, you want a reliable trailer offering you the strongest gates, the best floors in the business, and the best in guarding against animal bruising. You also want a trailer offering the best in bio security and it is the easiest to clean out. This trailer also needs to deliver the lowest cost of operation and the industry’s best resale value.

The Wilson Silverstar checks all of those boxes. It’s no wonder it out sells all the others combined and the Silverstar is consistently the most sought after, highest valued trailer in the used trailer market.

STANDARD FEATURES

1

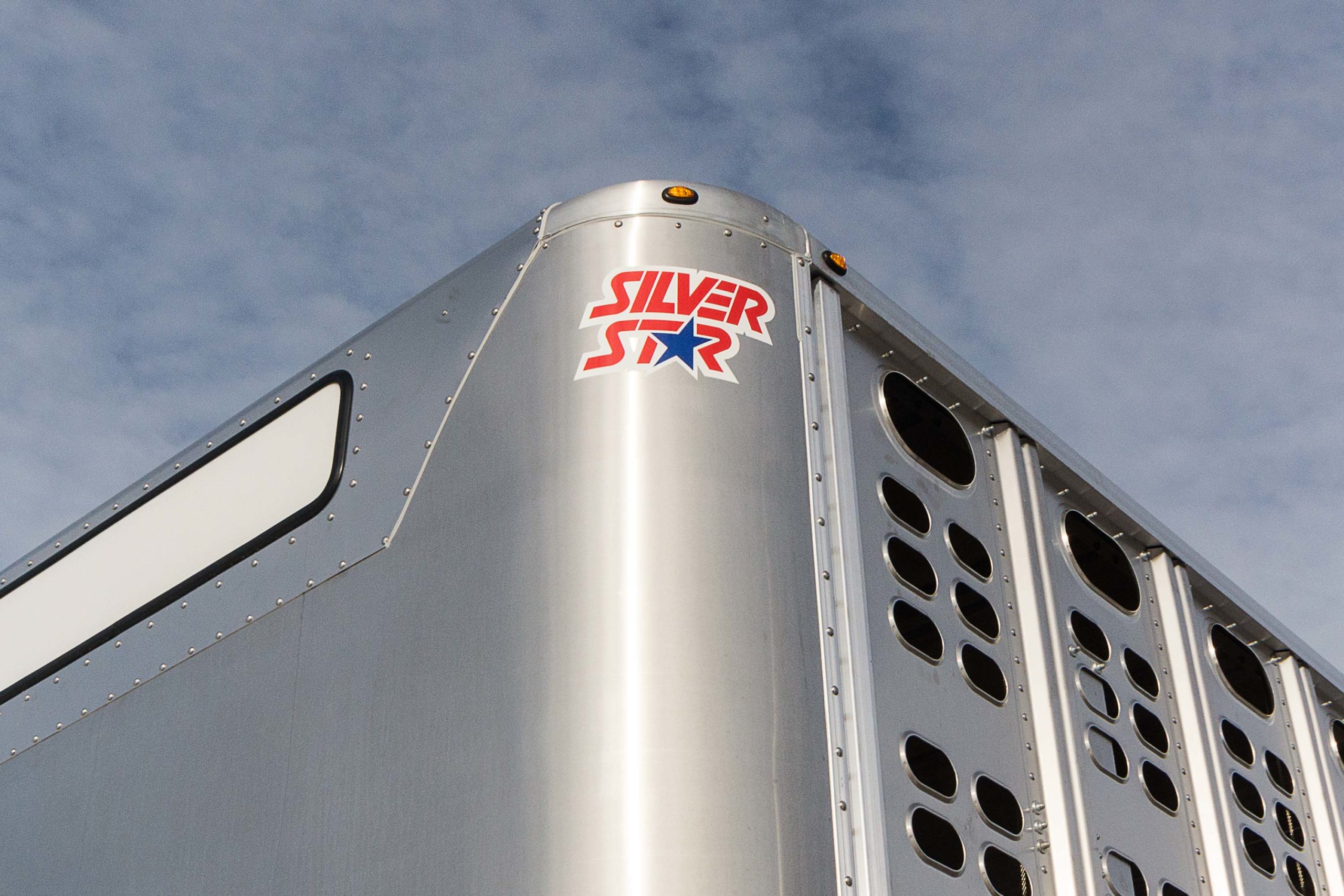

Radius NoseThe smooth wrap-around front and sweeping nose cap, rounded on three planes, has been wind tunnel tested and proven to be more aerodynamic. The spun corner caps are more resistant to denting and the front skin is thicker, which adds strength to the trailer.
2

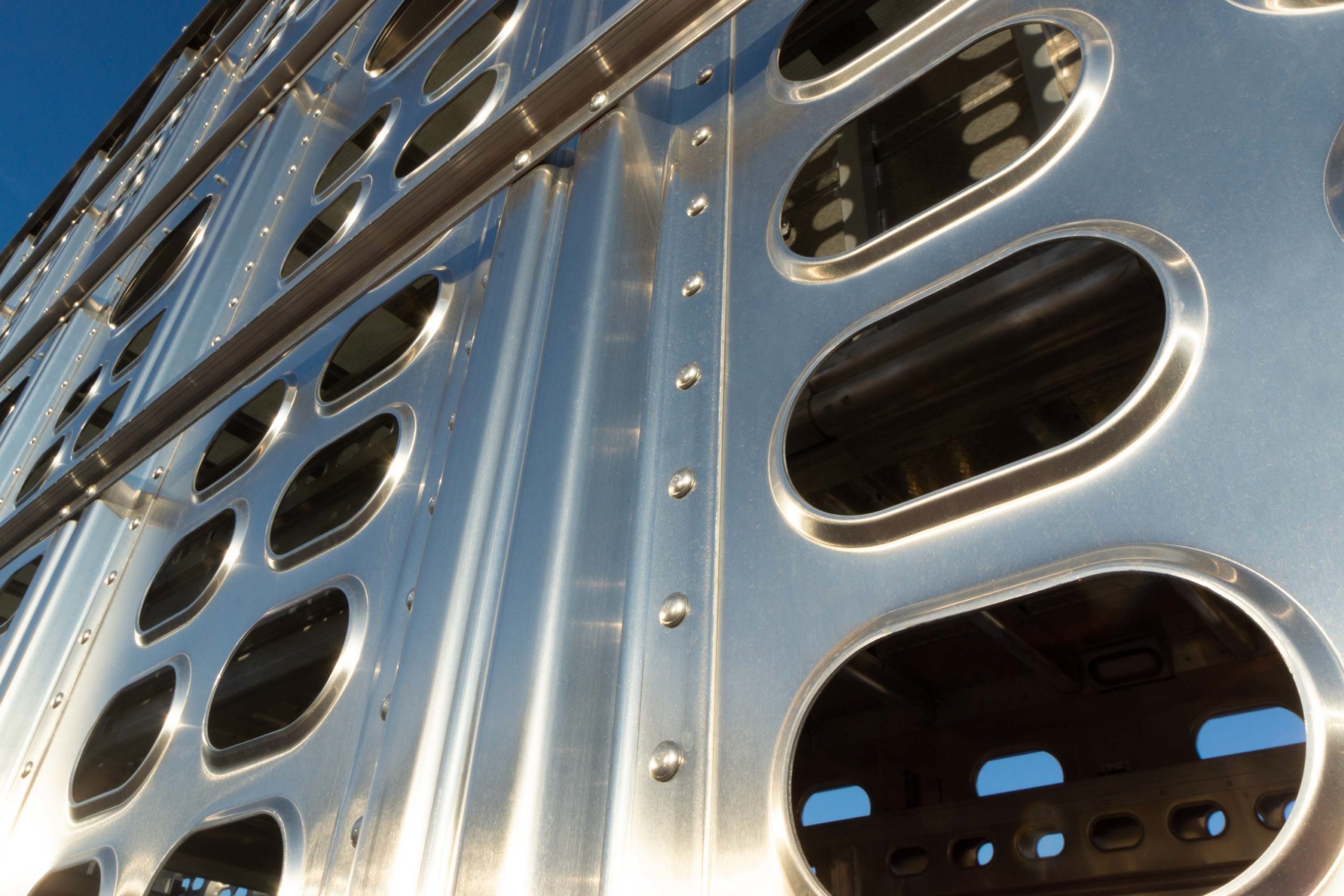

Side SkinsWilson uses the industry’s thickest side skin to produce their trailers. Larger, double embossed, oval slots provide superior airflow with punch patterns designed to minimize leakage. Your livestock arrives with less bruising and less stress with Wilson’s super smooth interior walls.
3
FloorsWilson’s heat-treated flooring is 6061T6 hardness aluminum, the hardest aluminum available for the best wearing and with the highest diamond tread height for the best traction. It is fastened, not welded, to 3” u-shaped crossbars, which means it is not subject to broken welds and the associated floor weaknesses.
4

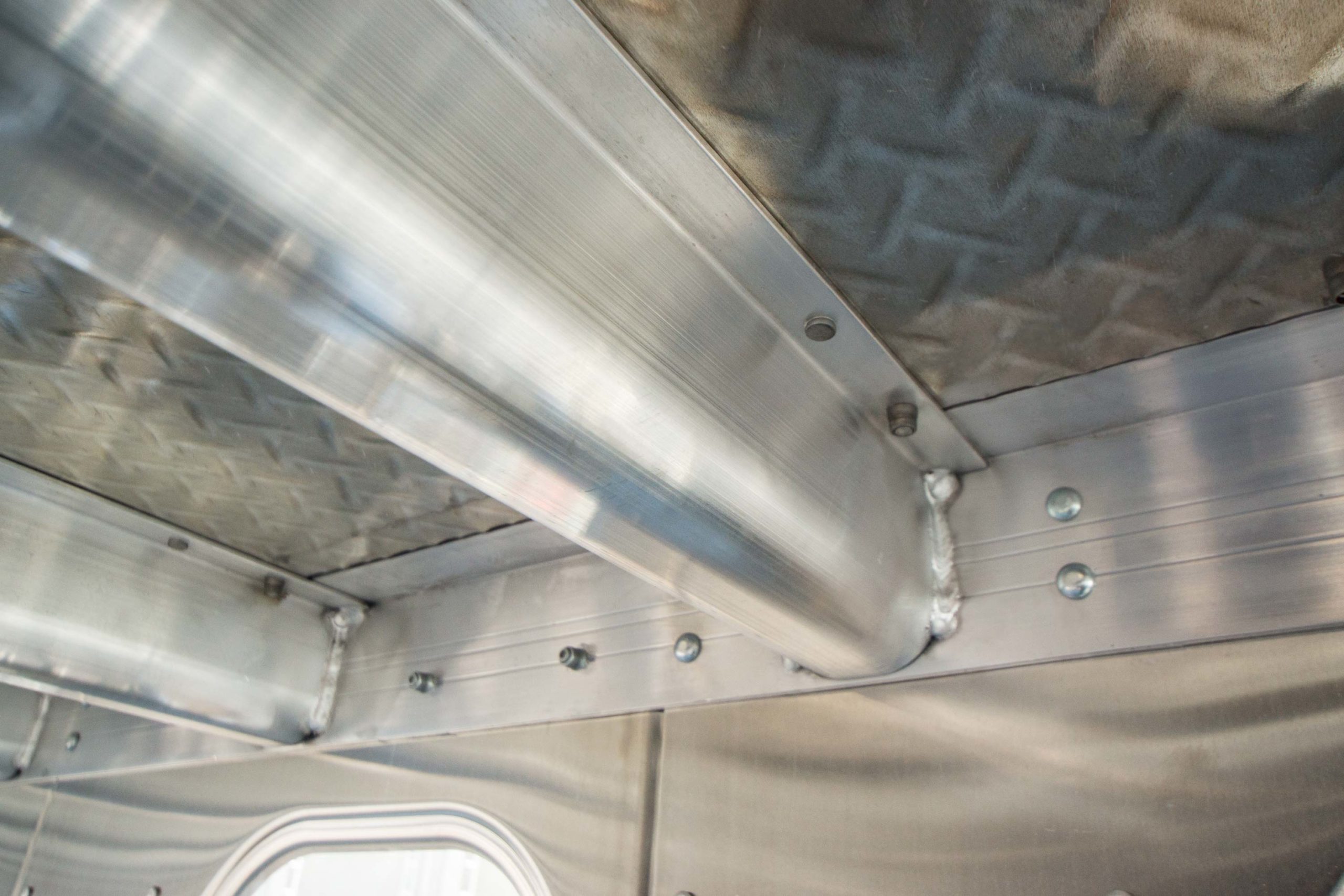

Floor Cross BarsThe design of Wilson’s exclusive u-shaped crossbars, used in both the stat deck and the belly, offers superior biosecurity, plus greater floor strength is attained since the floor is fastened to both sides of the crossbar. U-shaped crossbars are stiffer than z-crossbars and offer better resistance to twisting and less damage due to belly dragging.
5

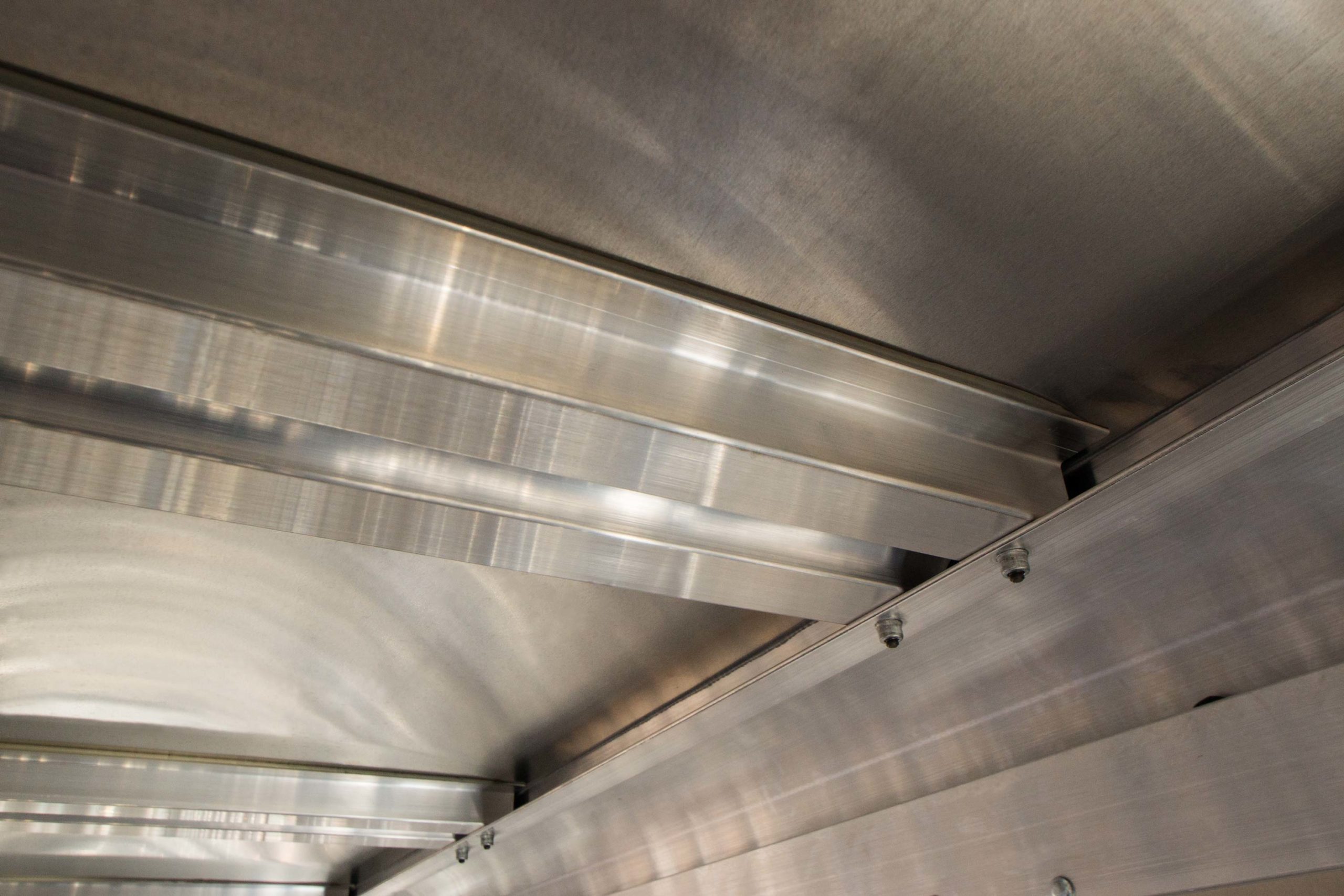

RoofA one-piece .045” aluminum roof skin is standard. Light-emitting ArmorTuf® roof material is available as an option.
6

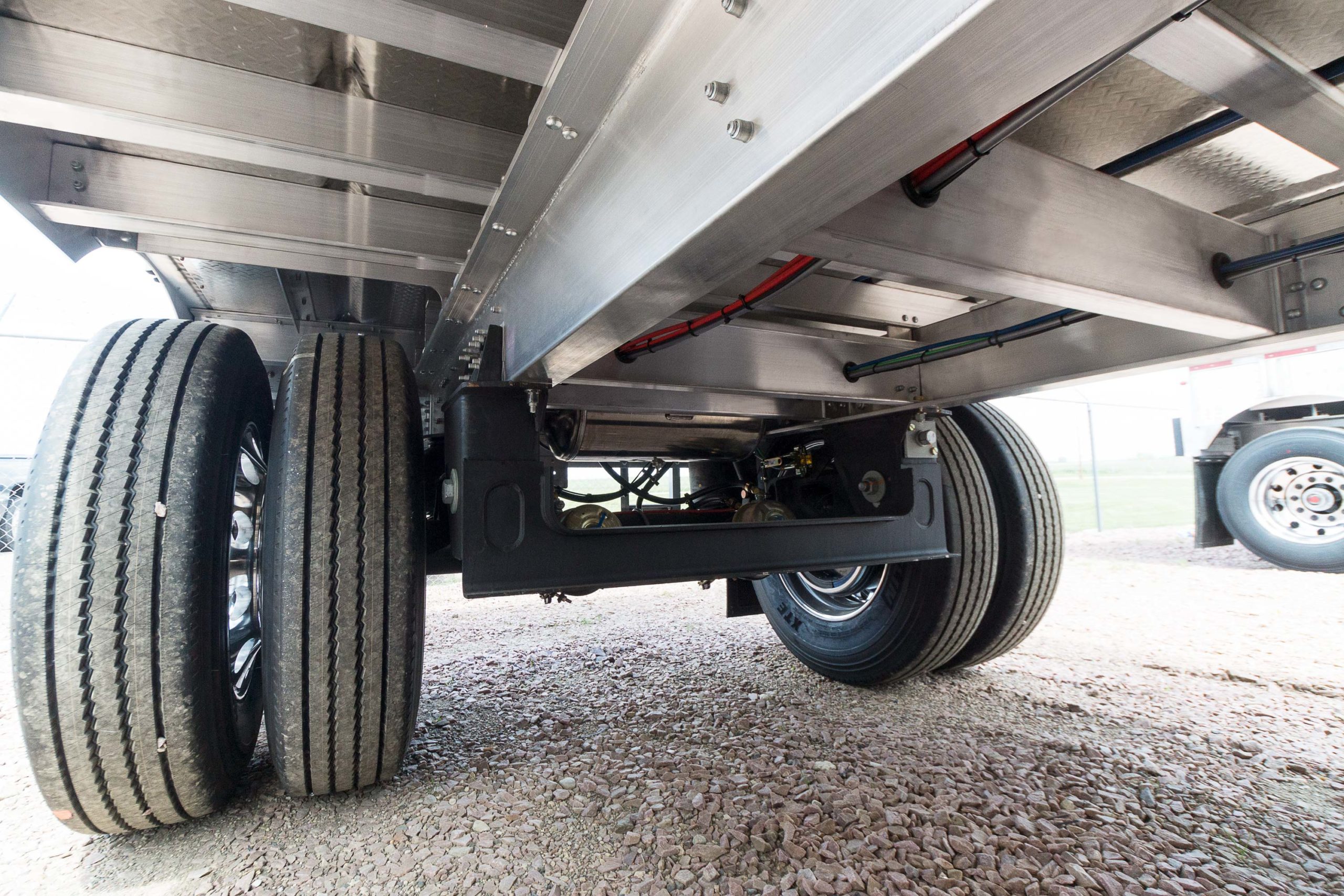

Sub FrameThe exclusive and standard Wilson Z2 extruded long member virtually eliminates corrosion, metal fatigue and loose fasteners in certain areas of the sub frame and deepbar.
7

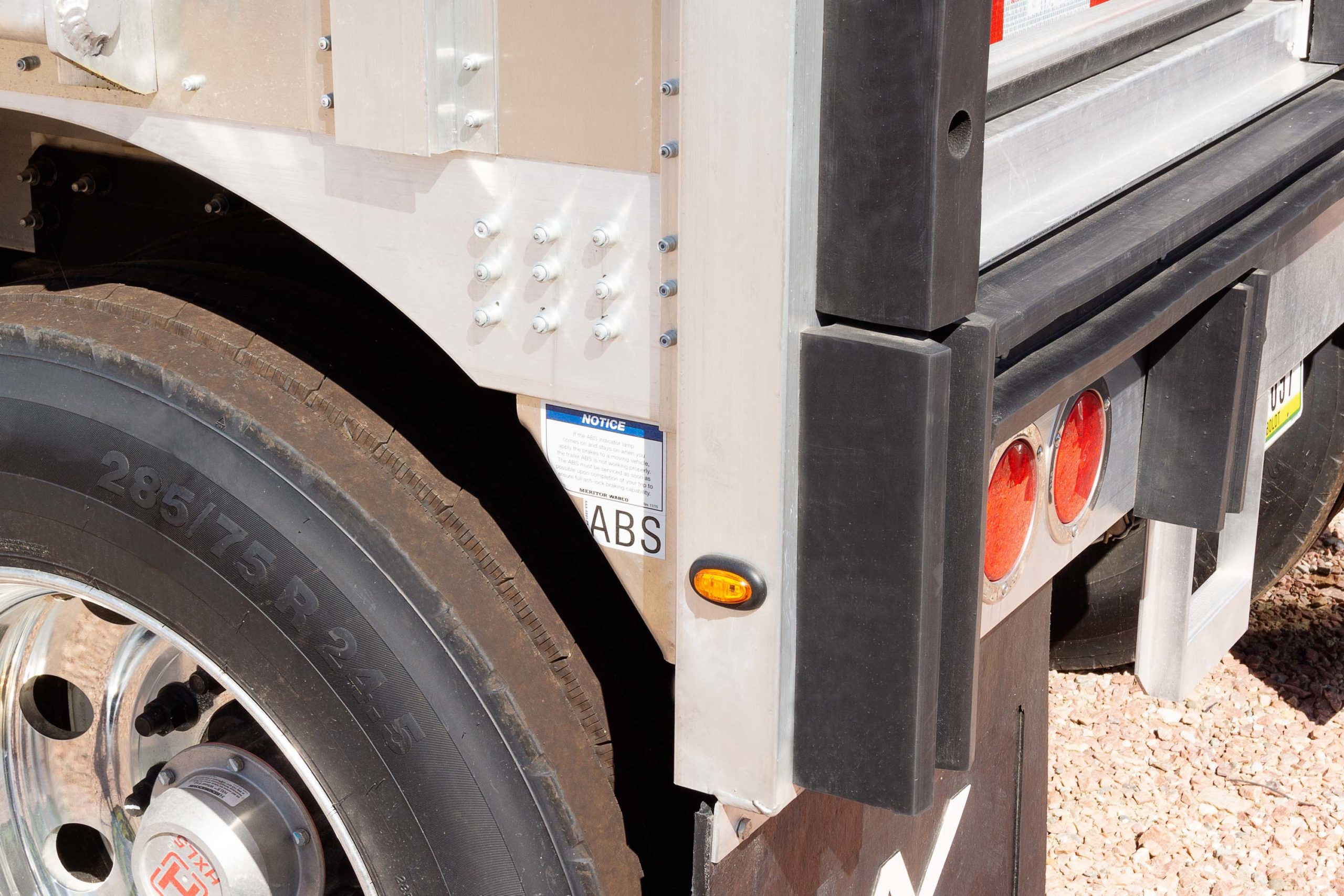

Rear Corner PostsWilson uses a true extrusion for their rear corner posts, which adds more strength for an area of the trailer receiving daily jolts when backing up to unloading chutes.

Wilson Trailer Advantage

Specs

LENGTH
46'-57'
WIDTH
Overall outside is 102". Inside width is 99".
HEIGHT
13'6" – 14'
KING PIN

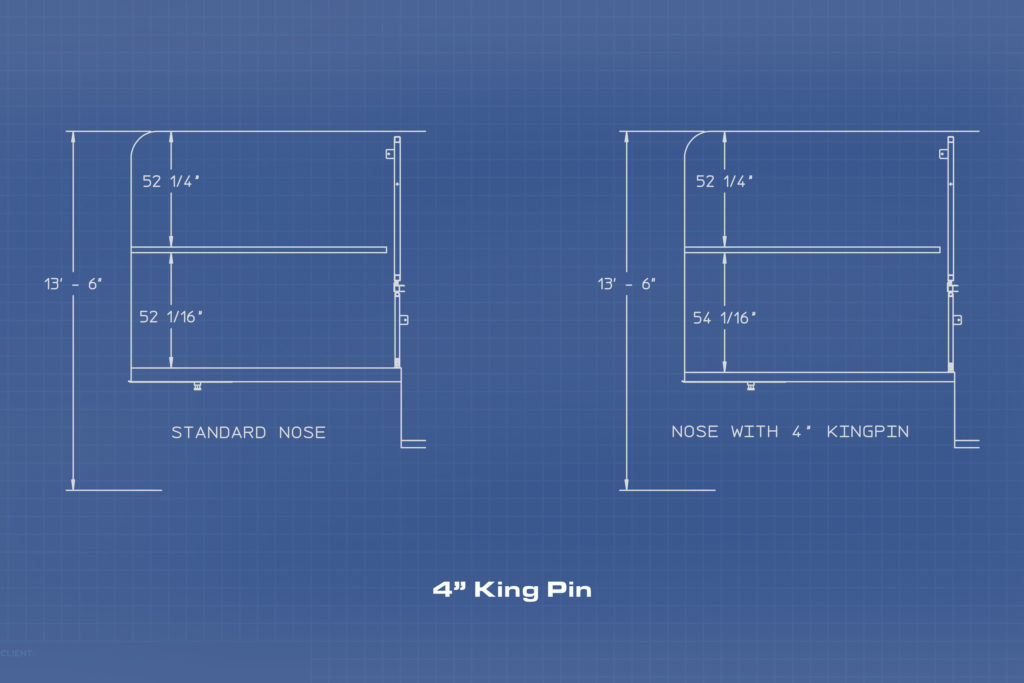

6" high assembly with a top locking channel. Standard setting: 30”, minimum setting: 27”, maximum setting: 44”. Pin settings deeper than 44" require the front to be lengthened. Note: 4" King Pin Settings Bullnose: Min. 30"; Radius: Min. 27"
LANDING GEAR
Extruded aluminum telescoping support legs with safety spring lock pins for height adjustment.
FRONT
12" radius front corners with .080" aluminum single wall construction and extruded aluminum rib reinforcing channels, and 6" aluminum lower front channel. Three-piece aluminum cap with spun corner caps.
SPARE TIRE CARRIER
None standard. Extra cost option.
SIDES
.080" Aluminum, Formed Posts on 21" Centers
Floor Drains
Two in rear deep bar as standard. Other locations are optional as specified by customer.
Clean-Out Door
Aluminum, punched pan-type with aluminum hinges and stainless steel locks. One 15" wide x 26-3/4" high opening in lower front compartment.
Access Door
Belly: Four aluminum punched pan-type with aluminum hinges and stainless steel locks, located on driver's side, just to rear of center. Opening is 27" wide by full height of compartments minus structural components.
Roof
Roof construction consists of one-piece .045" aluminum roof skin bonded to extruded aluminum roof bows.
Floor
Front: .110" aluminum tread plate with five longitudinal corrugations. Belly and Stat-Deck: .110" aluminum tread plate with five longitudinal corrugations supported by 3" extruded aluminum crossbars on 12" centers.
Rear: .125" tread plate, supported by suspension sub frame aluminum crossbars.

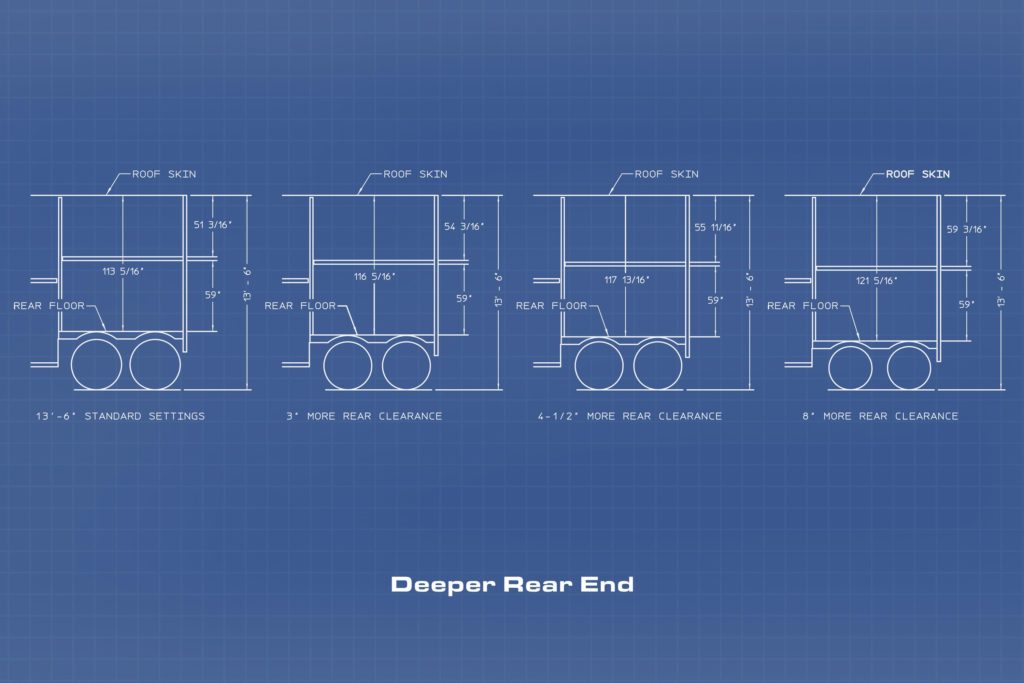

Note: 9'-0" through 12'-6" rear floors will have .125" flat treadplate as standard. 13'-0" through 19'-0" rear floors will have .125" corrugated tread plate as standard.
Rear End
Left-hand roll-up with 36" opening. Right-hand solid. Full-width rubber bumper, four vertical rubber bumpers, and a stirrup step for trailer access are standard. See Rear End Style No. A.
Rear Compartment
Lay Down Doghouse: Driver's side hinges level for deck and up for divider. Curb side is permanent deck.
Decks
Front Section: Calf rail for double-decking calves using optional deck plank.
Center Section: Stationary Deck for double-decking cattle.
Rear Section: Dog House for doubledecking. See spec drawing for dimensions.
STOR-DECK: Extruded aluminum stor-deck channels, with wear strips, in front compartment.
Divide Gates
Formed and punched aluminum. Front: gate/ramp combination. Rear: Left-hand load, swing inner gates. Styles vary with each model.
Ramps
Rear Pull-Out: 37-1/2" wide x 102" long, stores under rear stationary deck.
Rear Belly Ramp: For loading lower center compartment, accessible thru rear trap door.
Front Gate Fold-Down Ramp: For loading upper front compartment.
Front Hand-Operated Ramp: 67-3/4" long x 60" wide, lowers for access to front when upper swing gate is raised, and returns to level floor position when upper swing gate is closed.
Bullbar
Lightweight aluminum punched pan, fold-to-the-corner style.
Mud Flaps
Black, Ultra-Rubber, anti-spray type are standard.
Finish
All steel components are treated to retard rust. King Pin area is completely painted prior to installation and barrier material is added between dissimilar metals. All aluminum components are left natural.
Lights
• 7-way plug mounted in a StayDry box. • Sealed Harness and internal ground • Grote LED Clearance • Grote LED interior lights • Grote oval stop/turn lights in rear header • Grote 4" round tail lights in bumper
Suspension
CB2300 Air Ride, flange-mount, bolt-on SAF-Holland flange mounted to aluminum sub-frame.
Axles
Two, 5" round, 23,000 lbs. rating each.
Brakes
16-1/2" x 7" x 5/8" Extended Service air brakes: no dust shields. Mandatory FMVSS-121 braking system standard with automatic slack adjusters. Anti-Lock Braking System using a 2S-1M system is standard equipment.
Hubs
Dura-Lite
Drums
Cast steel, outboard mount.
Tires
Many options are available.
